Product Detail

GP-4201TW

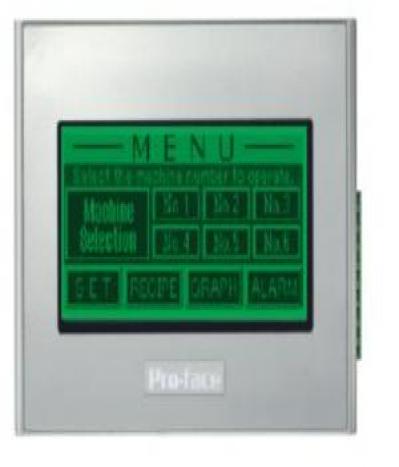

PROFACE GP-4201TW

Product Brief Description

Family
HMI
Series
GP4000 Series
Size
3"
Model
PFXGP4201TADW
Global Code
PFXGP4201TADW
Product Features
3" DC Analog
Repair Status
✔ (Repair service is available, reparable.)
Display specifications
Display type
TFT Color LCD
Display size
3.5"
Resolution
320 x 240 pixels (QVGA)
Effective display area
W70.56 x H52.92 mm [W2.78 x H2.08 in.]
Display colors
65,536 Colors (No blink) / 16,384 Colors (Blink)
Backlight
White LED (Not user replaceable. When replacement is required, contact your local distributor.)
Backlight service life
50,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 50%)
Brightness control
8 Levels (Adjusted with touch panel or software)
Touch panel type
Resistive Film (analog)
Touch panel resolution
1,024 x 1,024
Touchpanel lifetime
1,000,000 times or more
Language fonts
Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters), ANK: 158 (Korean, Traditional Chinese and Simplified Chinese fonts are downloadable.)
Character sizes
Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
Font sizes
Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.*1
8 x 8 dots
40 char. x 30 rows
8 x 16 dots
40 char. x 15 rows
16 x 16 dots
20 char. x 15 rows
32 x 32 dots
10 char. x 7 rows

1Other font sizes can be set up with the Editor software.

Electrical specifications
Rated input voltage
24 Vdc
Input voltage limits
19.2 to 28.8 Vdc
Allowable voltage drop
2 ms or less
Power consumption
9.6 W or less
In-rush current
30 A or less
Voltage endurance
1,000 Vac, 20 mA for 1 minute (between charging and FG terminals)
Insulation resistance
500 Vdc, 10 MΩ or more (between charging and FG terminals)
Environmental specifications
International safety standards
abs.gifbv.gifce.gifclassnk.gifctick.gifdnv.gifeac.gifgl.gifkc.gifrina.giful508.giful508ansi.gif
Surrounding air temperature
0 to 50 °C [32 to 122 °F]
Storage temperature
-20 to +60 °C [-4 to 140 °F]
Ambient humidity
10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)
Storage humidity
10 to 90 % RH (Wet bulb temperature : 39 °C [102.2 °F] max. - no condensation)
Dust
0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
Pollution degree
For use in Pollution Degree 2 environment
Corrosive gases
Free of corrosive gases
Air pressure (altitude range)
800 to 1,114 hPa (2,000 m [6,561 ft.] above sea level or less)
Vibration resistance
IEC/EN 61131-2 compliant
5 to 9 Hz single amplitude 3.5 mm [0.14 in.]
9 to 150 Hz fixed acceleration : 9.8 m/s2
X, Y, Z directions for 10 cycles (approx. 100 min.)
Concussion resistance
IEC/EN 61131-2 compliant 147 m/s2, X, Y, Z directions for 3 times
Noise immunity
Noise Voltage : 1,000 Vp-p
Pulse Duration : 1 µs
Rise Time : 1 ns
(via noise simulator)
Electrostatic discharge immunity
Contact Discharge Method: 6 kV (IEC/EN61000-4-2 Level 3)
Memory
Application memory
FLASH EPROM 8 MB (including a logic program area)
Data backup
SRAM 128 KB (Rechargeable Lithium battery for backup memory)
Logic program area
FLASH EPROM 132 KB (Equivalent to 15,000 steps)*2
Clock accuracy
±65 sec./month (deviation at room temperature and power is OFF)*3

2Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB.

3Depending on the operating temperature and age of unit, the clock can deviate from -380 to +90 sec./month. For systems where this level of deviation is a problem, the user should monitor and make adjustments when required.

Interface specifications
Serial (COM1)
Asynchronous Transmission: RS-232C, Data Length: 7 or 8 bits, Parity: None, Odd or Even, Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115,200 bps, Connector: D-Sub9 (plug)
Serial (COM2)
Asynchronous Transmission: RS-422 / 485, Data Length: 7 or 8 bits, Parity: None, Odd or Even, Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 to 115,200 bps, 187,500 bps (MPI), Connector: D-Sub9 (plug)
USB (Type A)
Conforms to USB 2.0 (Type A) x 1
Power supply voltage: 5 Vdc ±5 %
Output Current: 500 mA or less
Communication distance: 5 m [16.4 ft.] or less
USB (mini-B)
Conforms to USB 2.0 (mini-B) x 1, Communication Distance: 5 m [16.4 ft] or less
Structural specifications
Grounding
Functional grounding: Grounding resistance of 100 Ω, 2mm2 (AWG 14) or thicker wire, or your country's applicable standard. (Same for FG and SG terminals)
Cooling method
Natural air circulation
Structure
IP65f NEMA #250 TYPE 4X/13 (on the front panel when properly installed in an enclosure)*4
External dimensions
W132 x H106 x D42 mm [W5.2 x H4.17 x D1.65 in.]
Panel cut-out dimensions
W118.5 x H92.5 mm [W4.67 x H3.64 in.]
Panel thickness area: 1.6 to 5 mm [0.06 to 0.2 in.]*5
Weight
0.4 kg [0.89 lb] or less

4The front face of the GP unit, installed in a solid panel, has been tested using conditions equivalent to the standards shown in the specification. Even though the GP unit's level of resistance is equivalent to these standards, oils that should have no effect on the GP can possibly harm the unit. This can occur in areas where either vaporized oils are present, or where low viscosity cutting oils are allowed to adhere to the unit for long periods of time. If the GP's front face protection sheet becomes peeled off, these conditions can lead to the ingress of oil into the GP and separate protection measures are suggested. Also, if non-approved oils are present, it may cause deformation or corrosion of the front panel's plastic cover. Therefore, prior to installing the GP unit, be sure to confirm the type of conditions that will be present in the GP's operating environment. If the installation gasket is used for a long period of time, or if the unit and its gasket are removed from the panel, the original level of the protection cannot be guaranteed. To maintain the original protection level, be sure to replace the installation gasket regularly.

5Regarding dimensional tolerance, everything +1/-0 mm [+0.04/-0 in.] and R in angle are below R3 [R0.12 in.]. Even if the installation wall thickness is within the recommended range for the "Panel Cut Dimensions", depending on wall's material, size, and installation location of GP unit and other devices, the installation wall could warp. To prevent warping, the installation surface may need to be strengthened.

Dimensions
External dimensions
Panel cut-out dimensions
External dimensions with cable
